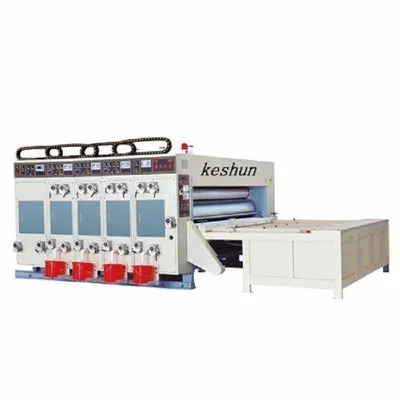

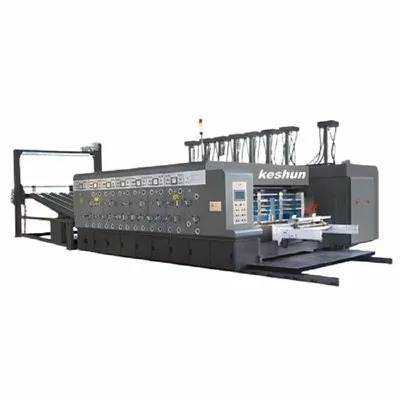

Flexo Printing Machine for Corrugated Carton



Automatic Corrugated Paperboard Boxes Small Carton 4 Colour Flexo Printing Slotting Die Cutting Machine for Carton Box.





* Flexo Printing Machine For Corrugated Carton is an automatic carton production equipment which integrates the functions of paper feeding, printing, slotting, die cutting .The equipment not only saves labor, but also realize the working concept of high speed, high efficiency and low consumption.

* The whole machine's electrical appliances and equipment spare parts all adopt international famous brands with stable and reliable quality, and adopt man-machine interface, which is simple, efficient, economical and easy to operate.









Project size	920	924	1224	1228	1426	1628
Max speed (pcs/min)	300	260	260	200	180	160
Feeding precision(mm)	±1
Min sheet size(mm)	300*500		340*600		420*600
Max sheet size(mm)	860*2100	860*2500	1150*2500	1150*2900	1350*2700	1500*2900
Skip sheet size(mm)	1200*2100	1200*2500	1500*2500	1500*2900	1800*2700	2000*2900
Max print area(mm)	900*2000	900*2400	1200*2400	1200*2800	1400*2600	1600*2800
Print precision(mm)	±0.5
Plate thicknesss(mm)	7.2
Min slot distance(mm) Positiveandneg. knives	130*130*130*130		140*140*140*140		150*150*150*150
	230*65*230*65		240*70*240*70		240*75*240*75
Max slot dep.(mm)	230	230	300	300	360	400
Slot precision(mm)	±1
Max die cut size(mm)	900*1950	900*2400	1200*2400	1200*2800	1400*2600	1600*2800
Die cut precision(mm)	±1





1. Famous brand Leading edge feeder

2.3 row sun feeding wheel

3.Automatic zero device* Paperboard Automatic Alignment

4.Touch screen control







1.1-6 colors printing is optional

2. Steel anilox or creamic anilox, Doctor blader system is optional

3. Printing phase 360 degree electrical adjustment

4.Printing phase fixing device

5. Ink circulation

6. Anilox roller auto lift/down* Oiling and polishing function as customer requirement

7.Touch screen control

The cost is different, we will provide the best solution to meed your requirement.







1.Slotter adjusment by Manual on the Photo

2.Button Control motor adjustment as customer requirement.

3.Full automatic Adjustment design as customer requirement









1. Rubber cushion roller auto repair device

2.Auto linear speed compensation device* International Famous Brand Cushion



Flexo Printing Machine For Corrugated Carton is suitable for any type corrugated carton box making ,such as : pizza box , shipping box , fruit box ,beer box, wine box , milk box ,computer box.
