The Corrugated Cardboard Production Line is a continuous, automated system engineered to convert containerboard rolls into single-wall (3-layer), double-wall (5-layer), or triple-wall (7-layer) corrugated boards. Designed for high-volume box plants, the system integrates roll handling, preheating, fluting, gluing, single-facing, bridging, double-backing, slitting-scoring, and cut-off operations into a synchronized manufacturing workflow.
Manufacturing Capability Snapshot
• In-House Machining: Heavy structural components (such as suction boxes, corrugated rolls, and pressure rolls) are processed on large-scale CNC floor boring and milling machines to guarantee structural rigidity and concentricity.
• Dynamic Balancing: All high-speed rotating rolls undergo strict dynamic balancing at operational speeds exceeding 3000 RPM to minimize mechanical vibration and radial runout.
• Surface Treatment: Corrugated rolls are manufactured from 48CrMo alloy steel, induction-hardened, and plated with functional hard chro
-
Compact Corrugated Board Production Line
The Compact Corrugated Board Production Line is engineered for medium-to-small packaging converters and regional box plants requiring high output within restricted floor spaces. Unlike traditional
Add to Inquiry -
Corrugated Board Slitting And Scoring Line
The Corrugated Board Slitting and Scoring Line is an automated production module deployed downstream of the corrugator or as an independent conversion station. It performs continuous longitudinal
Add to Inquiry -
Wide-Width Corrugated Board Line
The Wide-Width Corrugated Board Line is engineered for industrial packaging plants requiring high-output production of double-wall and triple-wall corrugated boards. Built with a heavy-duty frame
Add to Inquiry -
Automatic Corrugated Board Sheet Line
The Automatic Corrugated Board Sheet Line continuously converts raw paper reels into structured, high-strength corrugated boards. Engineered for high-output packaging plants seeking to minimize trim
Add to Inquiry -

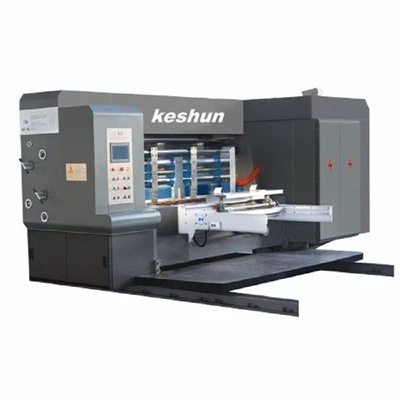

Five-Ply Corrugated Board Production Line
The Five-Ply Corrugated Board Production Line (heavy-duty double-wall corrugator) continuously converts raw containerboard and starch-based adhesive into high-strength 5-ply structural corrugated
Add to Inquiry -
Three-Ply Corrugated Board Production Line
The Three-Ply Corrugated Board Production Line (single-wall corrugated cardboard machine) transforms reel paper-specifically linerboard and fluting medium-into high-strength structural corrugated
Add to Inquiry
Technical Specifications
|
Parameter Category |
Standard Specifications |
Optional / Custom Range |
|
Working Width |
2200 mm (87") |
1400 mm – 2800 mm |
|
Design Speed |
250 m/min |
150 m/min – 300 m/min |
|
Economical Speed |
200 m/min |
120 m/min – 250 m/min |
|
Flute Profiles |
UV, V, A, C, B, E (Combinations available) |
Custom pitch and depth profiles |
|
Heat Source |
Saturated Steam (0.8–1.3 MPa) |
Natural Gas Burner / Thermal Oil |
|
Drive System |
Individual AC Servo Motors |
Variable Frequency Inverter Drives |
|
Electrical Supply |
380V, 50Hz, 3-Phase (Customizable) |
440V / 480V, 60Hz |
Key Features & Technical Logic
Hydraulic Mill Roll Stand:
Shaftless hydraulic clamping and arm lifting handle rolls up to 3 tons per side, reducing roll loading time to under 45 seconds.
01
Negative Pressure Single Facer:
Air suction stabilizes the medium on the corrugating roll, enabling high-speed flute formation without collapse or distortion.
02
Precise Glue Application:
Anilox roller gap adjustment utilizes pneumatic-mechanical linkage, maintaining glue film thickness within ±0.005 mm across variable speeds.
03
Thin-Blade Slitter Scorer:
Tungsten alloy steel blades achieve automatic sharpening and motor-driven lateral positioning in under 3 seconds without stopping production.
04
Helical Cut-Off Knife:
Spiral shear geometry reduces mechanical load on the drive motor, yielding clean, edge-crush-free cross cuts at high speeds.
05
E-Commerce Mailing Boxes: Produces high-strength B-flute and E-flute boards optimized for lightweight, crush-resistant shipping containers.
Industrial Heavy-Duty Packaging: Manufactures heavy 5-layer (BC flute) and 7-layer (AAA/BBC flute) corrugated sheets for machinery, automotive spare parts, and bulk agricultural produce.
Retail-Ready Packaging (RRP): Delivers clean slotting and high-precision creasing for corrugated trays and shelf-ready displays requiring structural fold accuracy.
Modular Configuration
The production line is modular, allowing configuration based on factory floor dimensions, raw material characteristics (kraft liner vs. recycled testliner), and energy availability.
Module 1 (Wet End):
Mill Roll Stands, Preheaters, Single Facers, Bridge Conveyor, Preconditioners, Double Backer.
Module 2 (Dry End):
Rotary Slitter Scorer, Direct-Drive High-Speed Cut-Off, Stacker.
Module 3 (Glue Kitchen & Utilities):
Automatic starch preparation system, steam piping manifolds, and closed-loop condensate recovery units.
Customization Options:
Energy-saving frequency conversion steam heating systems, inline waste trim removal blowers, and remote IoT diagnostic modules.
Reliable corrugated board output depends on strict dimensional tolerance control during manufacturing and assembly.
Raw Material Verification: Ultrasonic testing of structural steel profiles and spectral analysis of alloy steel forgings prior to machining.
Assembly Inspection: Laser interferometer calibration is applied to guide rails and roll parallelism, holding alignment tolerances within 0.05 mm per 3 meters.
Factory Acceptance Testing (FAT): Every line undergoes a 72-hour dry-run simulation test at rated mechanical speeds, verifying electrical synchronization, pneumatic response times, and thermal distribution across heating plates.
Compliance Standards: Built in accordance with CE safety directives and ISO 9001 quality management standards.
Installation & Technical Support
Foundation Engineering:
Detailed civil engineering load diagrams and anchor bolt placement blueprints provided 60 days prior to shipment.
On-Site Commissioning:
Mechanical engineers and PLC programming specialists supervise plant installation, electrical wiring, wet trials, and operator training.
Spare Parts Inventory:
Critical wearing components (corrugated rolls, pressure rolls, glue applicator blades, encoder units) stocked locally or dispatched via express freight to minimize plant downtime.
